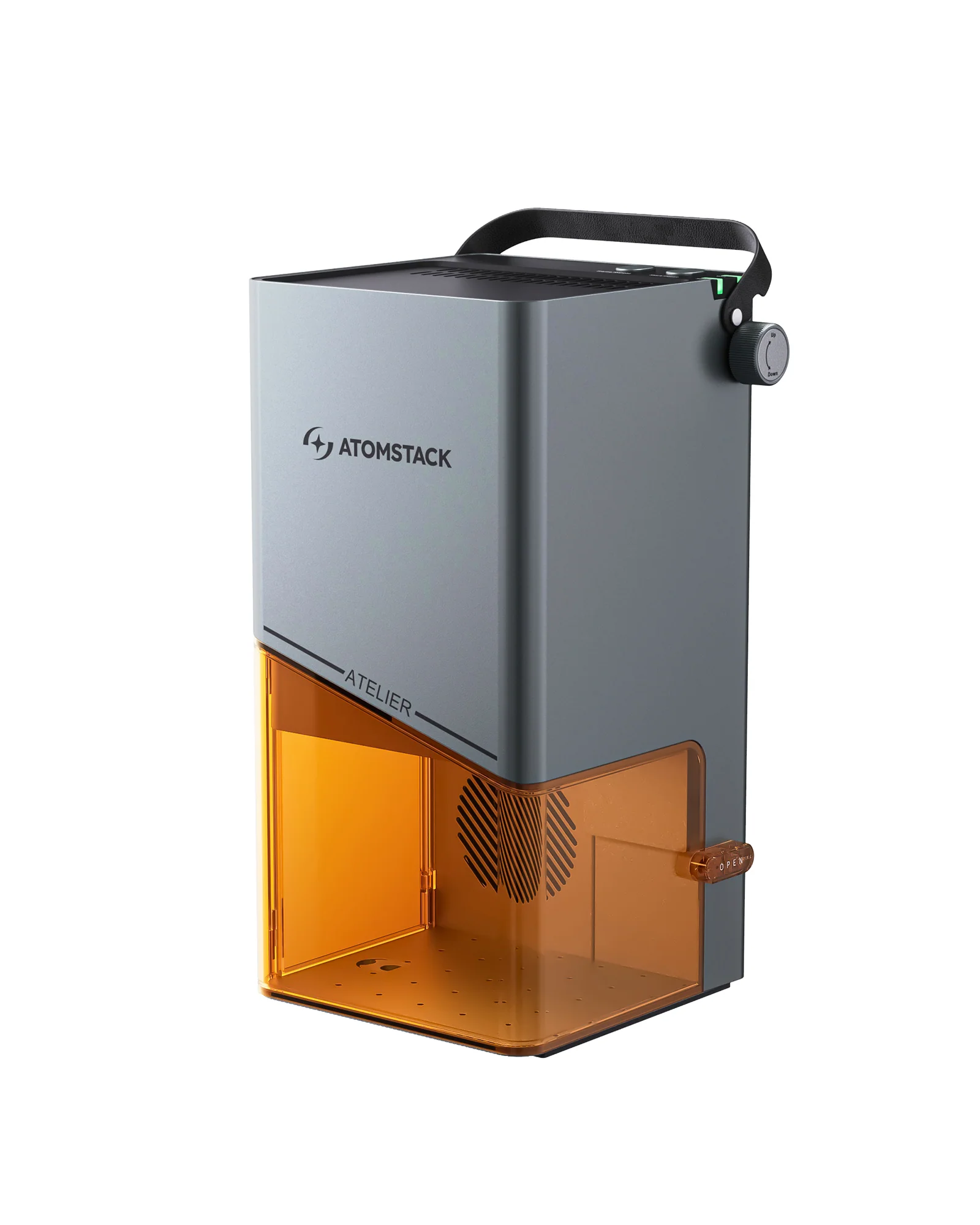

AtomStack Atelier AI Diode Laser Engraver with Built-in Camera
Fully Enclosed
Design, Safety Assured
The airtight structure with visual window not only protects eyes from laser exposure—enabling safe, naked-eye operation—but also contains dust and harmful fumes, ensuring a cleaner, safer workspace.
Atelier Fully Enclosed Design Safety
Safe for Direct viewing
The fully enclosed design with a viewing window protects your eyes from the laser(safe visible operation), traps dust and fumes, and keeps your workspace cleaner and safer.
Separate Door & Focusing System
During batch processing, simply open the door to replace materials—no need to remove the protective cover or repeatedly refocus.
Unlike others, this streamlined workflow offers greater convenience and eliminates laser exposure risks.
Certified Class 1 Laser Safety
Atelier L1 stands as the only Class 1 certified blue laser engraving system (IEC 60825-1) on the market,
delivering technical-grade safeguarding to empower your free creations with uncompromised safety.
Smart Interlock Safety System
The door-interlocked design instantly stops the laser when opened-preventing accidenta! exposure and ensuring safety compliance.
15° Tilt-Activated Auto-Stop
Tilt over 15,The system instantly stops laser operation-preventing exposure and ensuring safety.
USB Safety Interlock
Insert the UsB key to unlock processing and related functions.
Built-in HD Camera
The built-in HD camera delivers up to 1 mm alignment accuracy. Paired with AtomStack Studio, it
enables automated batch processing—handling multiple pieces for efficient, high-volume production.
Compact and Portable - Ready Anywhere
Atelier is ready to use straight out of the box — no assembly needed. With a 120 × 120 mm (≈ 4.7″ × 4.7″) work area,
it handles most everyday materials and designs. And thanks to its built-in handle, it’s easy to carry, space-saving, and versatile wherever you create.
Accuracy and Efficiency
Incorporating dual Sharp 7W high-beam-quality diodes, our proprietary beam compression and coupling technology delivers a potent 12W laser output with superior spot characteristics. The optimized blue laser optical system features maintenance-friendly calibration mechanisms, ensuring consistent long-term performance.
Highest Engraving Speed
With its galvo scanning structure, the machine reaches engraving speeds of 4000 mm/s, compared to 1200–1500 mm/s on standard gantry machines. This allows it to finish jobs in one-third the time. Process 50 personalized coasters in just 12 minutes instead of 35, making it ideal for pop-up stores and craft fairs facing urgent deadlines.
Laser Type:Diode Laser
Max Laser Power:12W
Working Area:120 mm x 120 mm(≈4.72"x 4.72")
Compatible Materials:Wood, Bamboo, Paper, Leather,Cardboard, Cork, slate, Felt, Fabric, MDF, Coated Metals, Dark/opaqueAcrylic,etc.
Max Engraving/Cutting Speed:4000 mm/min
Max Preview Speed:15000 mm/min
Positioning Accuracy:0.01 mm
Positioning Method:Visual Positioning (Camera) / High-speed Outline Preview (15,000 mm/s)
Preview Features:Rectangle / Outline / Combined
Laser Safety Class:Class 1
Safety Features:
Fully Enclosed Design
Tilt Detection
Door Open Detection
USB Safety Key
Official: AtomStack Studio (Android / iOS / Windows / macOS)
Compatible: LightBurn (Unofficial - requires separate license)
Connectivity:Wi-Fi | Hotspot | USB Cable
Dimensions (L x W x H):196 mm x 201 mm x 350 mm
Weight:3.5KG(≈7.7 lbs)
What's in The Box?
Atelier Engraver × 1
Power Adapter × 1
USB-C Cable × 1
Exhaust Hose × 1
Hose Clamp ×1
Laser Safety Goggles × 1
Positioning Bars × 2
M4*6 Thumb Screws × 4
Camera Cal × 1
Kraft Paper × 1
USB Key × 1
M4*16 Set Screws × 4
Dust-free Cloth× 1
H2/H2.5Hex wrench × 1
User Manual × 1
